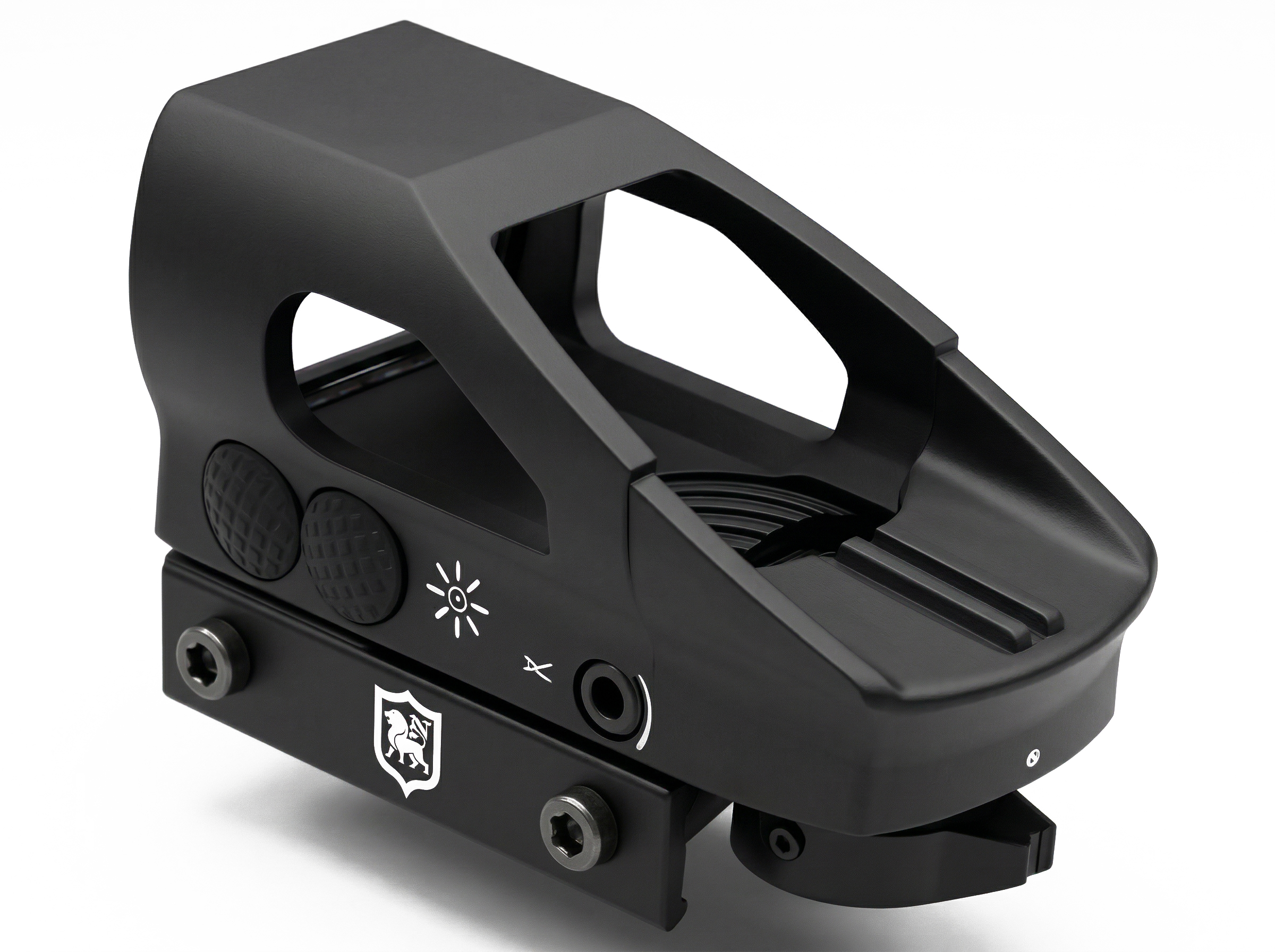

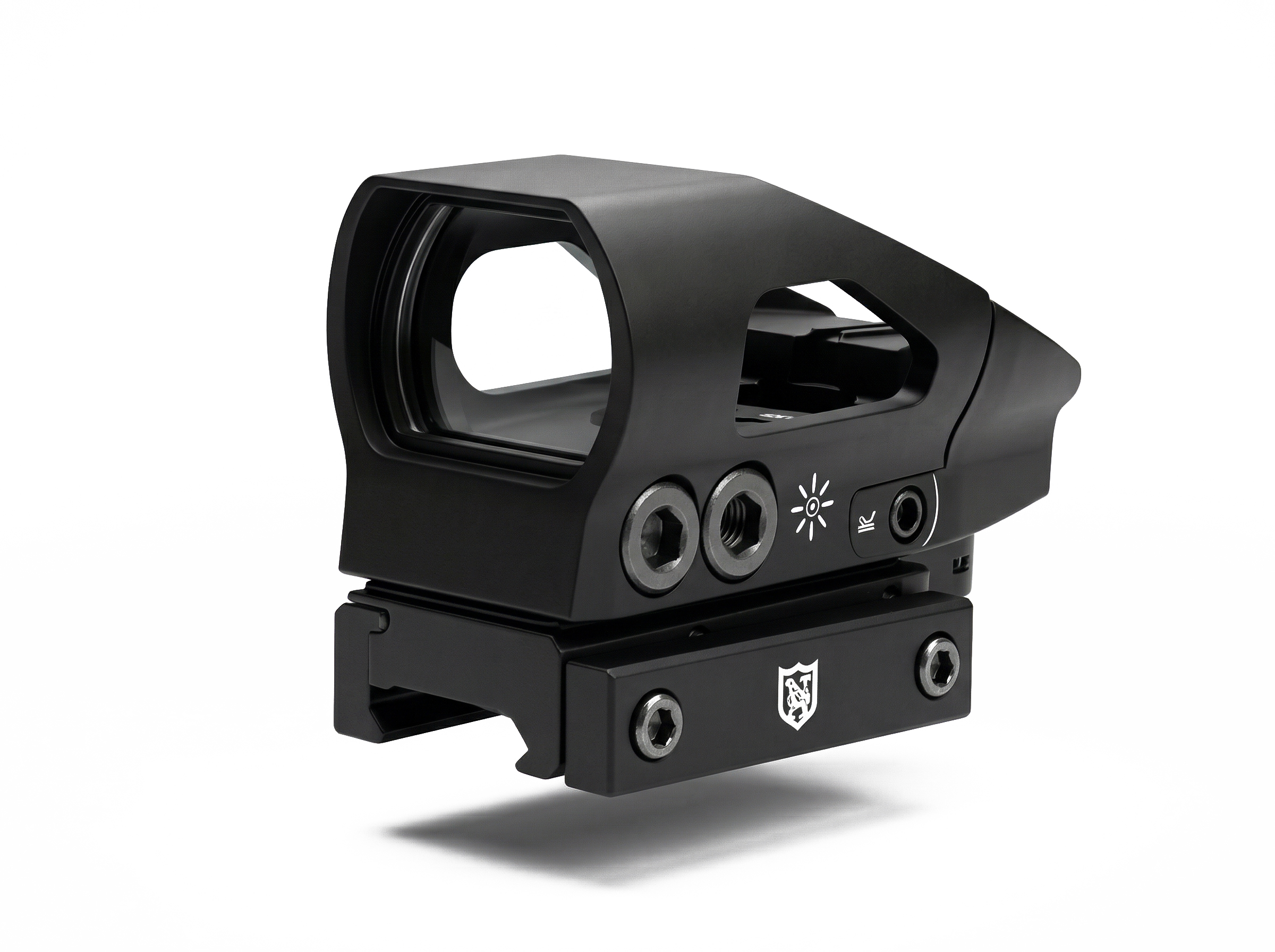

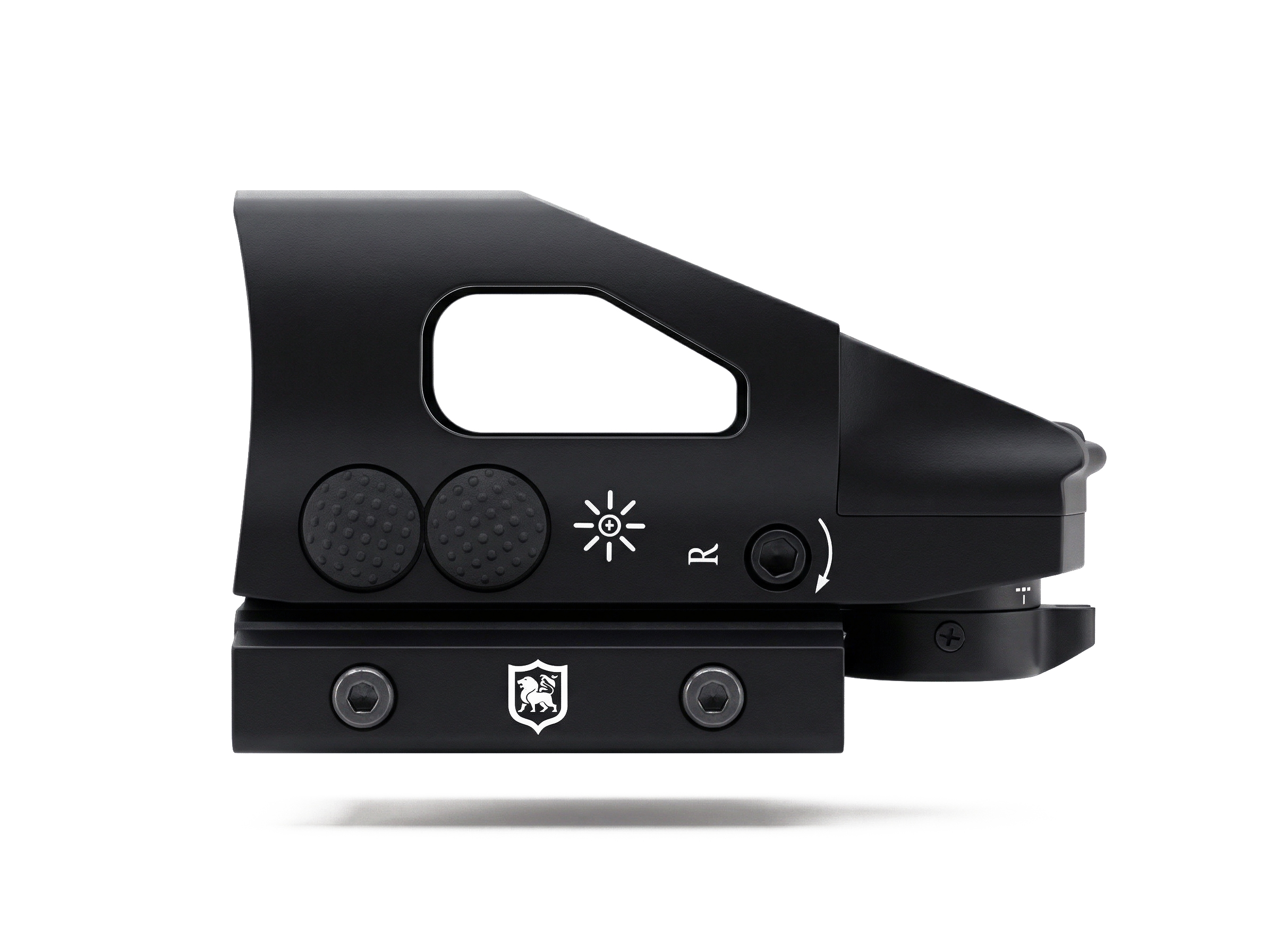

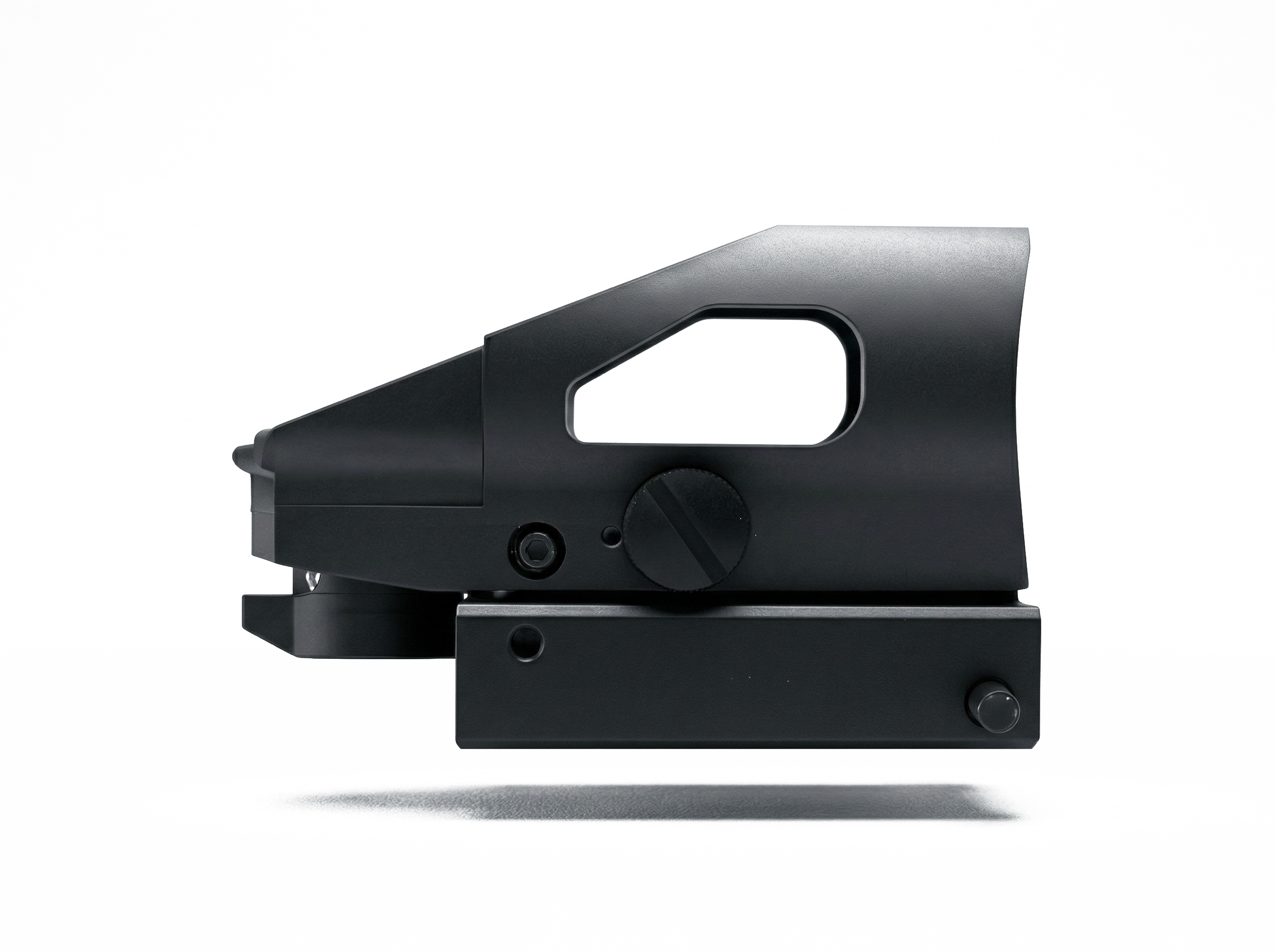

NS534
Features
- Fast target acquisition
- Parallax free and unlimited eye relief
- 1x magnification
- Compact design and light weight
- Rugged construction and consistently reliable performance
- 12 position dot intensity adjustment
- Precision click adjustments for windage and elevation
- Fully-coated lenses for increased brightness and sharp image
- Shockproof, waterproof and fog proof
- Scratch-resistant anodizing
- Mounts for 5/8” rails others on request
- Dual colour illumination red/green
- Features 4 different reticle pattern in one sight
Waterproof
For wet environments
Shock Proof
Withstands recoil
Multicoated Lenses
Optimized resolution
Illumination
Support at edge of day
You won’t put it in a pool, but you almost can
Specifications
| Model | Magnification | Reticle, size | Manually brightness level steps | Elevation Range cm @ 100m / in @100yds |
Windage Range cm @ 100m / in @100yds |
Sight lens (WxH) (mm) | Dimensions (LxWxH) (mm) | Weight (incl. battery) (g) | Weight (without battery) (g) | Battery | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NS433 | 1 | Red Dot | 8 positions | 175 | 63 | 175 | 63 | 30x20 | 95x51x66.5 | 212 | 208 | |
| NS533 | 1 | Red Dot | 8 positions | 175 | 63 | 175 | 63 | 40x20 | 95x56x67 | 225 | 221 | |
| NS534 | 1 | Red Dot | 8 positions | 175 | 63 | 175 | 63 | 34x24 | 81x39x54 | 141 | LR764 1pcs | |
| NS130 | 1 | Red Dot | 10 positions | 86 | 31 | 86 | 31 | Ф32 | 14.5X5.5X7.4 | 320 | 310 | CR2032 1pcs |
| NSLX3 | 1 | Red Dot, 4MOA | 6 positions | Ф30 | 250 (length) | 110 | AG13 3pcs | |||||
| NSLX2 | 4 | 390g (13.8 oz) | ||||||||||
Specific Images
