Airking 4-12x42 AO
Features:
- Supplied with 3/8 one pc base mount
- 1 inch matte black alloy body tube
- AO models feature parallax adjustment on bell
- IR (illumin.) models feature illuminated reticle red/green
- HMD reticles
- Multicoated lenses
- Waterproof, fogproof, shockproof
- Nitrogen filled
- 1/4 MOA adjustments (7mm@100m)
Fast eyefocus
Subject to alterations
Waterproof
For wet environments
Shock Proof
Withstands recoil
Nitrogen Filled
Fog free
Multicoated Lenses
Optimized resolution
1 Inch
Tube Diameter
You won’t put it in a pool, but you almost can
Harder than you can imagine, lifetime warranty
Specifications
| Model | Magnification | Obj. Diameter (mm) | FOV (m at 100m) High power / Low power |
Click Value mm at 100m |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (mm) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (mm) | Weight (grams) | Parallax (m) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NGRA2732 | 2 - 7 | 32 | 4.2 | 14.6 | 7 | 60 | 60 | 75 | 85 | ● | 300 | 540 | 9.1 - ∞ | ● | HMD | ||
| NGRA41242 | 4 - 12 | 42 | 3.2 | 9.6 | 7 | 60 | 60 | 65 | 75 | ● | 336 | 671 | 9.1 - ∞ | ● | HMD | ||
| NGRA432 | 4 | 32 | 9.3 | 9.3 | 7 | 80 | 80 | 75 | 75 | ● | 310 | 490 | 9.1 - ∞ | ● | HMD | ||
| NGRA451450 | 4.5 - 14 | 50 | 2.1 | 6.5 | 7 | 60 | 60 | 70 | 80 | ● | 370 | 766 | 9.1 - ∞ | ● | HMD | ||
| NGRA3942 | 3 - 9 | 42 | 4.0 | 11.9 | 7 | 60 | 60 | 75 | 85 | ● | 325 | 660 | 9.1 - ∞ | ● | HMD | ||
| Model | Magnification | Obj. Diameter (inch) | FOV (ft at 100 yds) High power / Low power |
Click Value MOA |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (inch) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (inch) | Weight (oz) | Parallax (yds) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NGRA2732 | 2 - 7 | 1.26 | 12.5 | 43.8 | 1/4 | 60 | 60 | 3.0 | 3.3 | ● | 11.8 | 19.0 | 10 - ∞ | ● | HMD | ||
| NGRA41242 | 4 - 12 | 1.65 | 9.6 | 28.8 | 1/4 | 60 | 60 | 2.6 | 3.0 | ● | 13.2 | 23.7 | 10 - ∞ | ● | HMD | ||
| NGRA432 | 4 | 1.26 | 27.8 | 27.8 | 1/4 | 80 | 80 | 3.0 | 3.0 | ● | 12.2 | 17.3 | 10 - ∞ | ● | HMD | ||
| NGRA451450 | 4.5 - 14 | 1.97 | 6.3 | 19.6 | 1/4 | 60 | 60 | 2.8 | 3.1 | ● | 14.6 | 27.0 | 10 - ∞ | ● | HMD | ||
| NGRA3942 | 3 - 9 | 1.65 | 11.9 | 35.7 | 1/4 | 60 | 60 | 3.0 | 3.3 | ● | 12.8 | 23.3 | 10 - ∞ | ● | HMD | ||

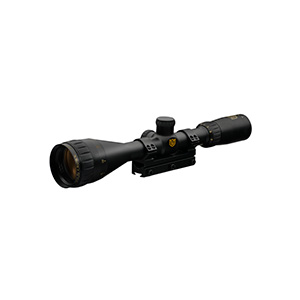

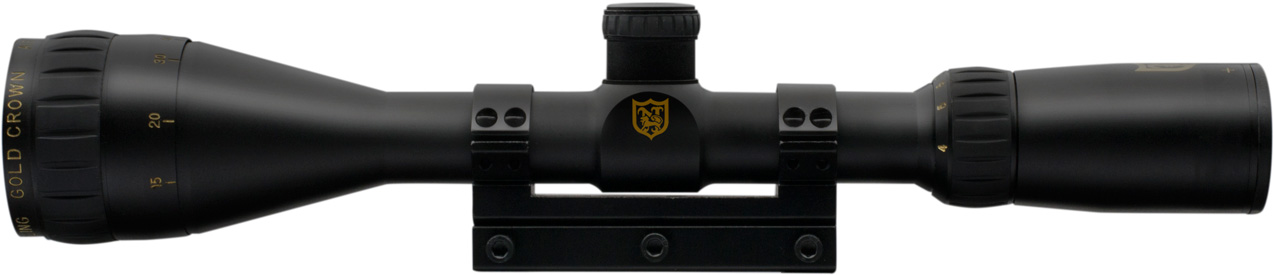

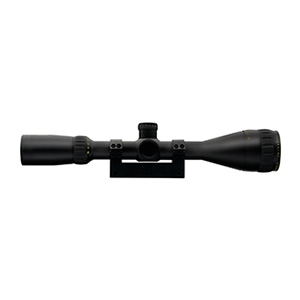

Specific Images
