Diamond 3-12x62
Features:
- CNC machined parts made to tightest tolerances
- Aircraft approved aluminium
- High Grade Optical lens coatings for maximum light transmission
- Low profile adjustments
- Fast finger adjustable dials
- Rubber enhanced zoom ring
- Speed focused eyepiece
Waterproof
For wet environments
30mm
Tube Diameter
Shock Proof
Withstands recoil
Nitrogen Filled
Fog free
Multicoated Lenses
Optimized resolution
Illumination
Support at edge of day
You won’t put it in a pool, but you almost can
Harder than you can imagine, lifetime warranty
Specifications
| Model | Magnification | Obj. Diameter (mm) | FOV (m at 100m) High power / Low power |
Click Value mm at 100m |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (mm) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (mm) | Weight (grams) | Parallax (m) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NDSI1424 | 1 - 4 | 24 | 10.1 | 40.3 | 15 | 100 | 100 | 75 | 85 | ● | 257 | 520 | 91 | ● | No.4 Dot | ||
| NDSI15642 | 1.5 - 6 | 42 | 6.1 | 24.4 | 15 | 80 | 80 | 85 | 100 | ● | 297 | 567 | 91 | ● | No.4 Dot | ||
| NDSI3942 | 3 - 9 | 42 | 4.3 | 12.8 | 7 | 60 | 60 | 85 | 100 | ● | 310 | 539 | 91 | ● | No.4 Dot | ||
| NDSI251050 | 2.5 - 10 | 50 | 3.3 | 13.1 | 7 | 60 | 60 | 100 | 100 | ● | 328 | 552 | 91 | ● | No.4 Dot | ||
| NDSI31256 | 3 - 12 | 56 | 3.1 | 12.3 | 7 | 60 | 60 | 90 | 110 | ● | 340 | 680 | 91 | ● | No.4 Dot | ||
| NDSI31242 | 3 - 12 | 42 | 3.1 | 12.3 | 7 | 60 | 60 | 90 | 90 | ● | 91 | ● | No.4 Dot | ||||
| NDSI31262 | 3 - 12 | 62 | 3.0 | 12.3 | 7 | 60 | 60 | 90 | 90 | ● | 91 | ● | No.4 Dot | ||||
| Model | Magnification | Obj. Diameter (inch) | FOV (ft at 100 yds) High power / Low power |
Click Value MOA |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (inch) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (inch) | Weight (oz) | Parallax (yds) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NDSI1424 | 1 - 4 | 0.94 | 30.2 | 121.0 | 1/2 | 100 | 100 | 3.0 | 3.3 | ● | 10.1 | 18.3 | 100 | ● | No.4 Dot | ||
| NDSI15642 | 1.5 - 6 | 1.65 | 18.3 | 73.2 | 1/2 | 80 | 80 | 3.3 | 3.9 | ● | 11.7 | 20.0 | 100 | ● | No.4 Dot | ||
| NDSI3942 | 3 - 9 | 1.65 | 12.8 | 38.4 | 1/4 | 60 | 60 | 3.3 | 3.9 | ● | 12.2 | 19.0 | 100 | ● | No.4 Dot | ||
| NDSI251050 | 2.5 - 10 | 1.97 | 9.8 | 39.4 | 1/4 | 60 | 60 | 3.9 | 3.9 | ● | 12.9 | 19.5 | 100 | ● | No.4 Dot | ||
| NDSI31256 | 3 - 12 | 2.20 | 9.2 | 36.8 | 1/4 | 60 | 60 | 3.5 | 4.3 | ● | 13.4 | 24.0 | 100 | ● | No.4 Dot | ||
| NDSI31242 | 3 - 12 | 1.56 | 9.3 | 36.8 | 1/4 | 60 | 60 | 3.5 | 3.5 | ● | 100 | ● | No.4 Dot | ||||
| NDSI31262 | 3 - 12 | 2.44 | 9.0 | 36.8 | 1/4 | 60 | 60 | 3.5 | 3.5 | ● | 100 | ● | No.4 Dot | ||||

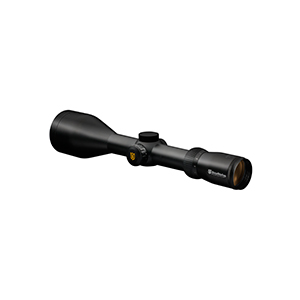

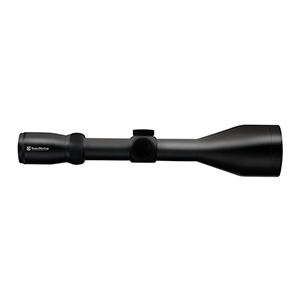

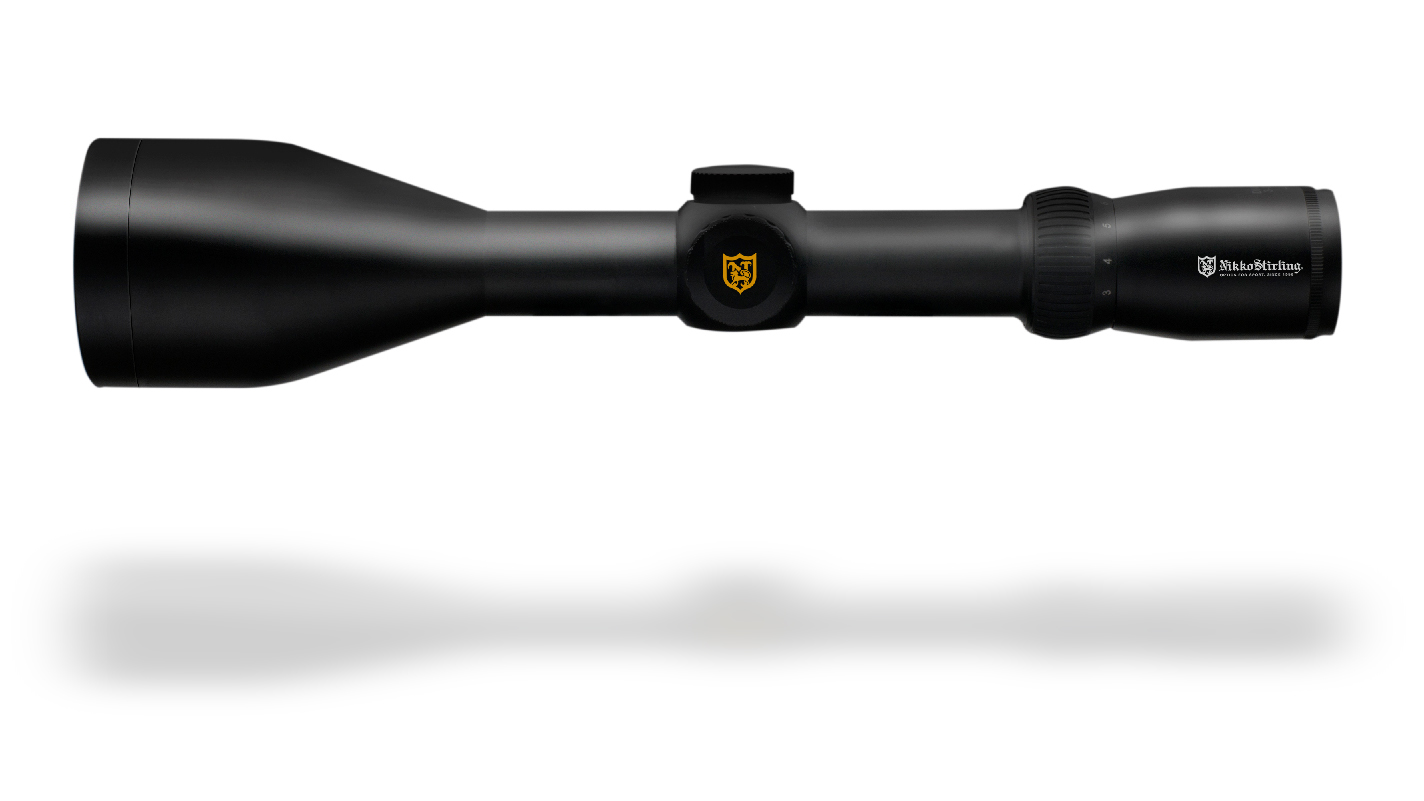

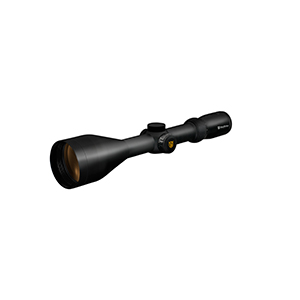

Specific Images
