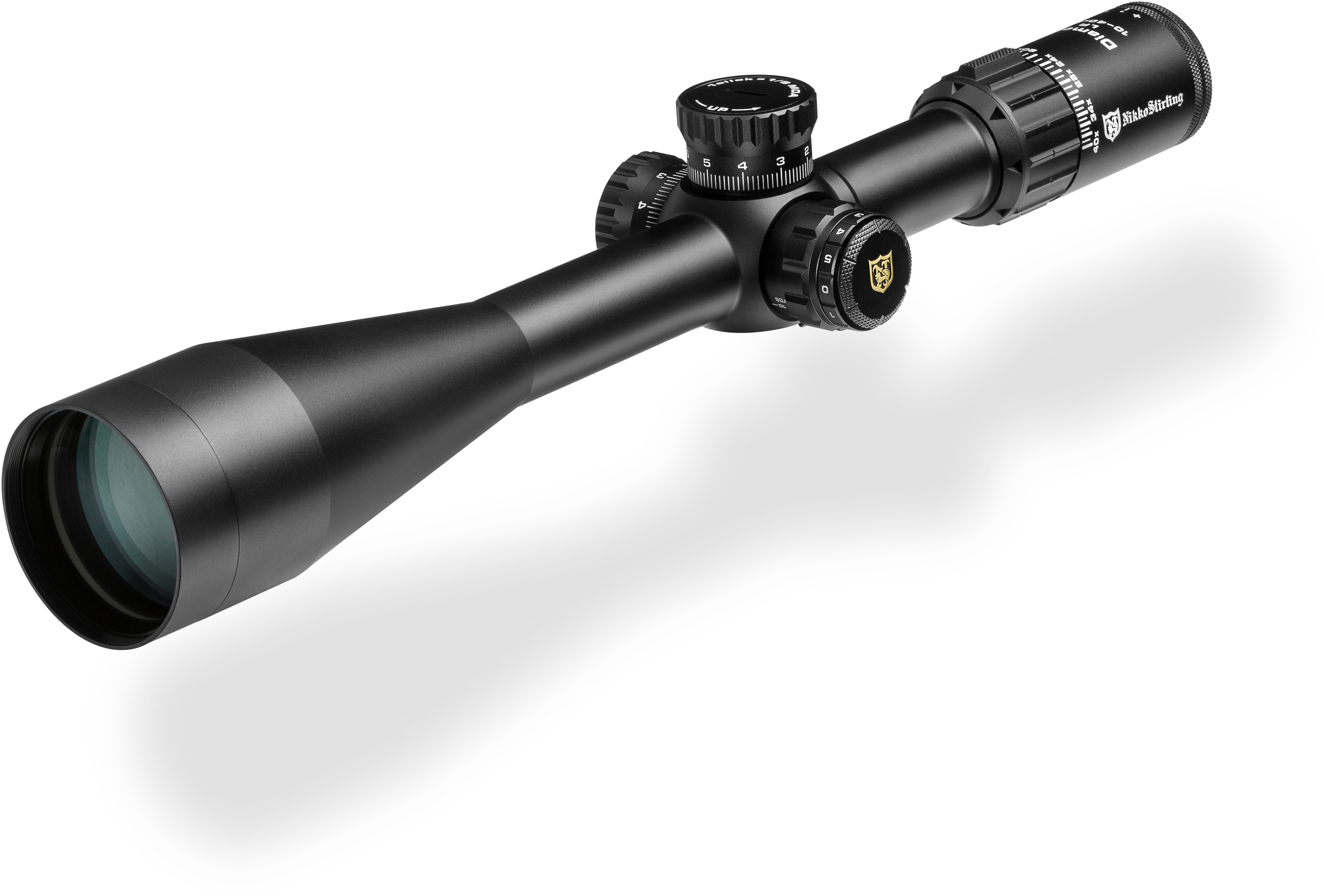

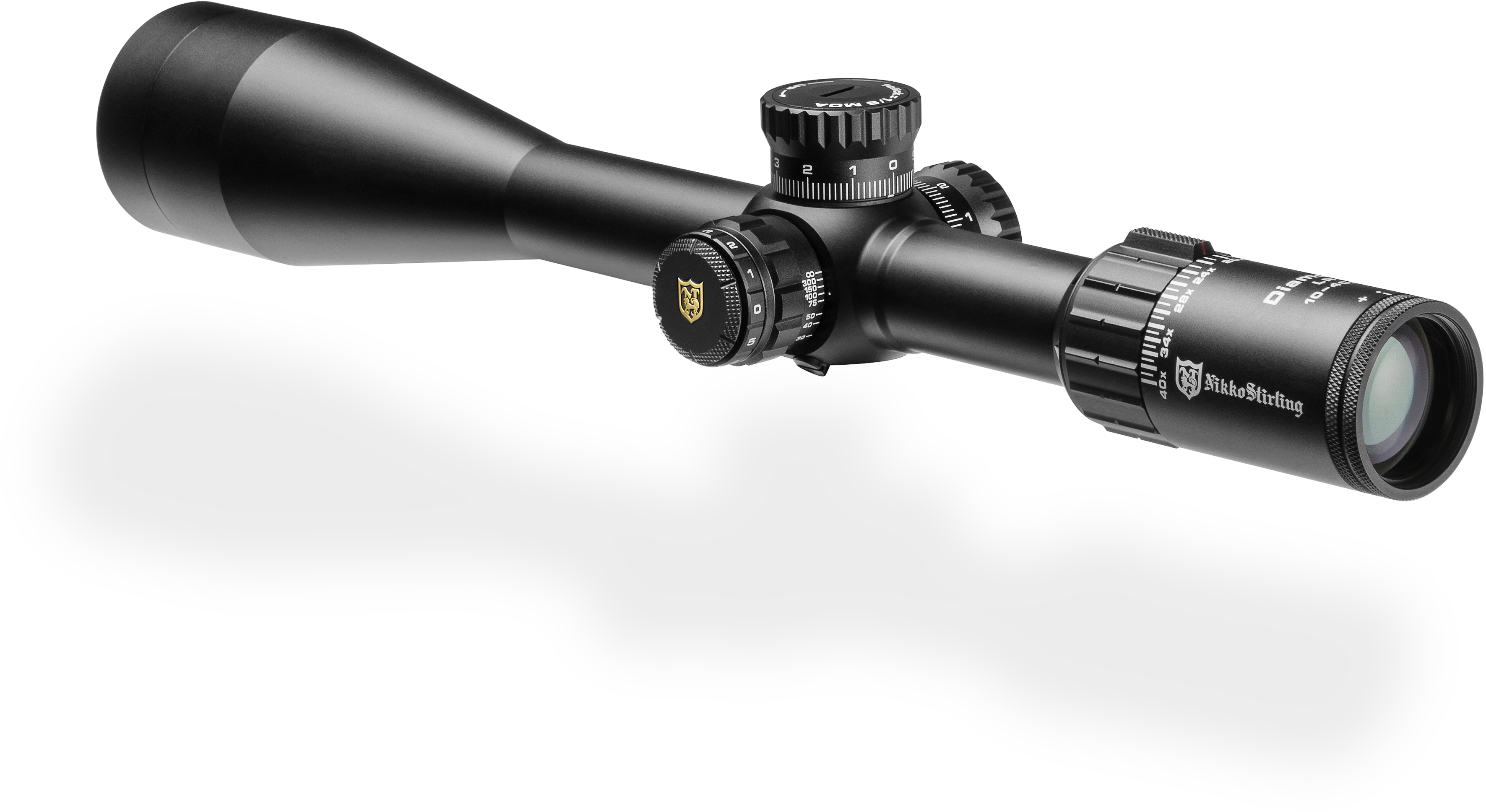

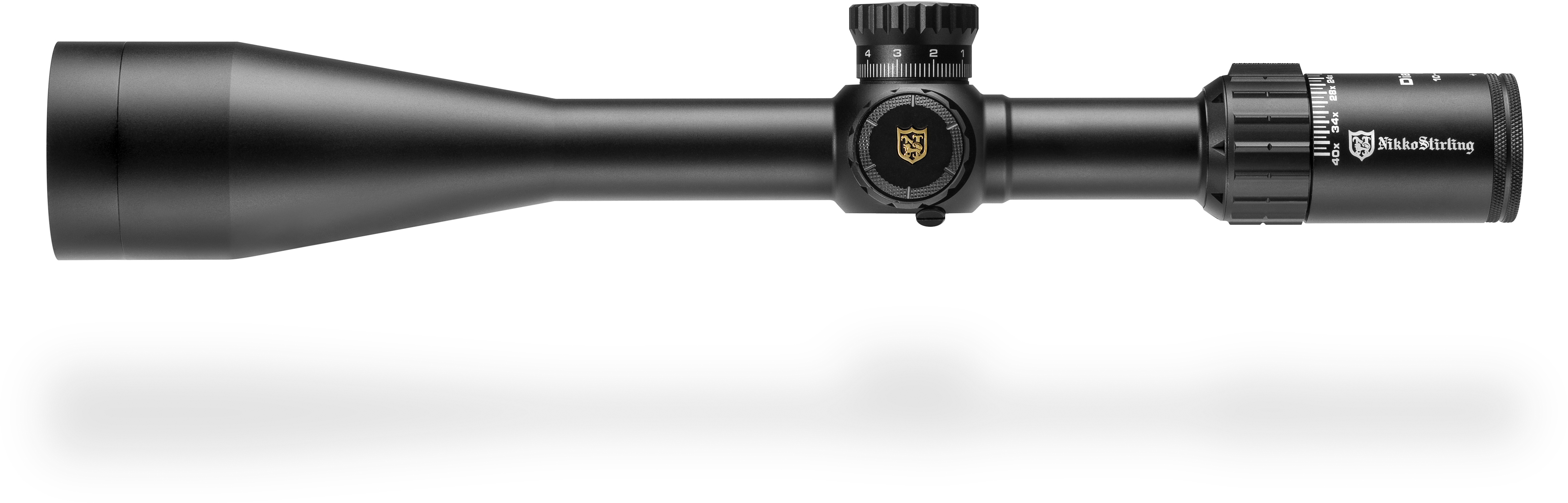

Diamond Long Range 10-40x56
Features:
- 30mm aircraft-grade aluminium, one-piece main tube

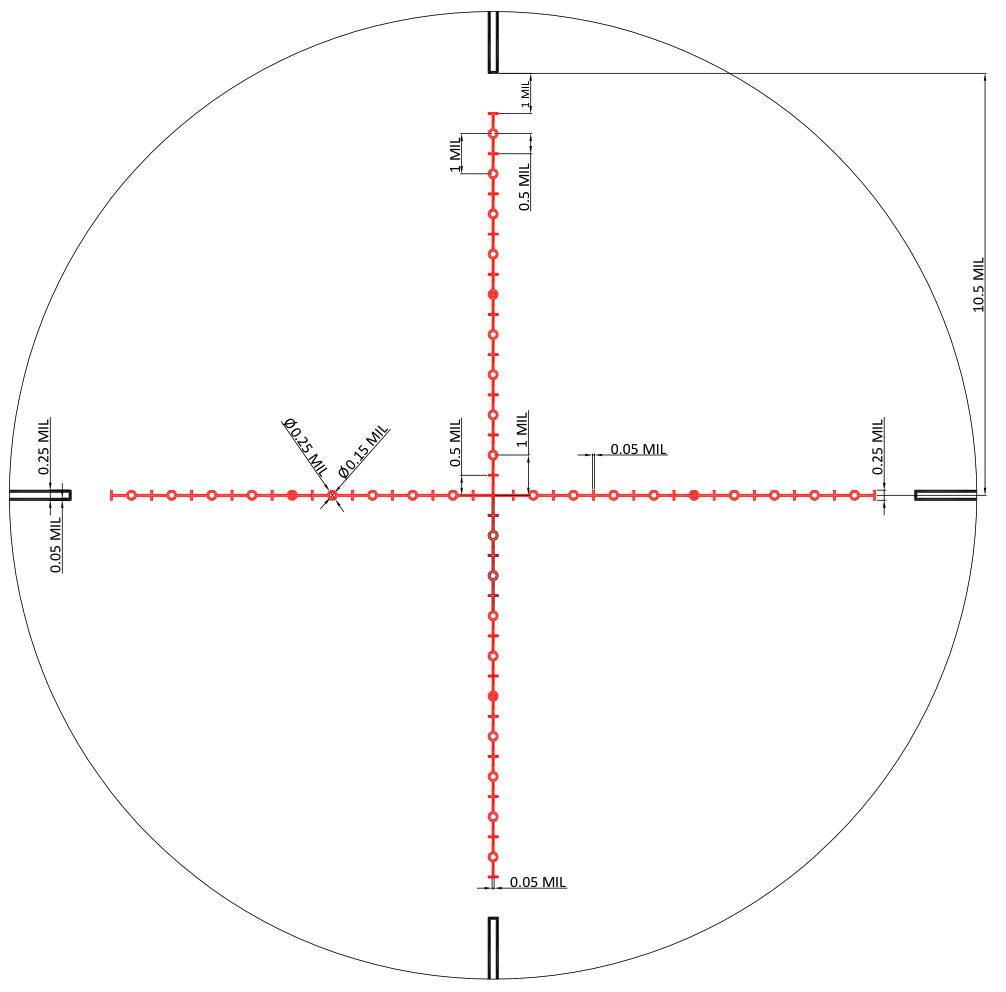

- High end glass etched reticle skeleton HMD (Half Mil Dot)
- Fully multi-coated lens
- Microlux ETE GEN III glass coatings
- 1/8 MOA turret adjustments
- 4” of eye relief
- Side Parallax Adjustable from 15 Yards to ∞
- Nikko Stirlings’ RTZ® (Return to Zero)
- Supplied with 2 ballistic drop turrets
- Elevation turret for quick shooting
- Optional side-wheel available
- Sunshade included
- Dual-color red/green illumination settings
Waterproof
For wet environments
30mm
Tube Diameter
Shock Proof
Withstands recoil
Nitrogen Filled
Fog free
Multicoated Lenses
Optimized resolution
Illumination
Support at edge of day
RTZ
RTZ® (Return to Zero)
You won’t put it in a pool, but you almost can
Harder than you can imagine, lifetime warranty
Specifications
| Model | Magnification | Obj. Diameter (mm) | FOV (m at 100m) High power / Low power |
Click Value mm at 100m |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (mm) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (mm) | Weight (grams) | Parallax (m) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NDSI41650LRHF | 4 - 16 | 50 | 2.7 | 10.7 | 7 | 60 | 60 | 80 | 80 | ● | 349 | 784 | 9.1 - ∞ | ● | HF/skeleton HMD | ||
| NDSI62450LRHF | 6 - 24 | 50 | 1.8 | 7.1 | 7 | 40 | 40 | 80 | 80 | ● | 390 | 788 | 10 - ∞ | ● | HF/skeleton HMD | ||
| NDSI104056LRHMD | 10-40 | 56 | 0.9 | 3.5 | 7 | 40 | 40 | 95 | 105 | ● | 425 | 880 | 9.1 - ∞ | ● | HF/skeleton HMD | ||
| Model | Magnification | Obj. Diameter (inch) | FOV (ft at 100 yds) High power / Low power |
Click Value MOA |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (inch) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (inch) | Weight (oz) | Parallax (yds) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NDSI41650LR | 4 - 16 | 1.97 | 8.0 | 32.1 | 1/4 | 60 | 60 | 3.1 | 3.1 | ● | 13.7 | 27.7 | 10 - ∞ | ● | HF/skeleton HMD | ||
| NDSI62450LR | 6 - 24 | 1.97 | 5.4 | 21.4 | 1/4 | 40 | 40 | 3.1 | 3.1 | ● | 15.4 | 27.8 | 11 - ∞ | ● | HF/skeleton HMD | ||
| NDSI104056LRHMD | 10-40 | 2.20 | 2.6 | 10.5 | 1/8 | 40 | 40 | 3.7 | 4.1 | ● | 16.7 | 31.0 | 10 - ∞ | ● | HF/skeleton HMD | ||
