Diamond Long Range 4-16x50
Features:
- 30mm aircraft-grade aluminium, one-piece main tube

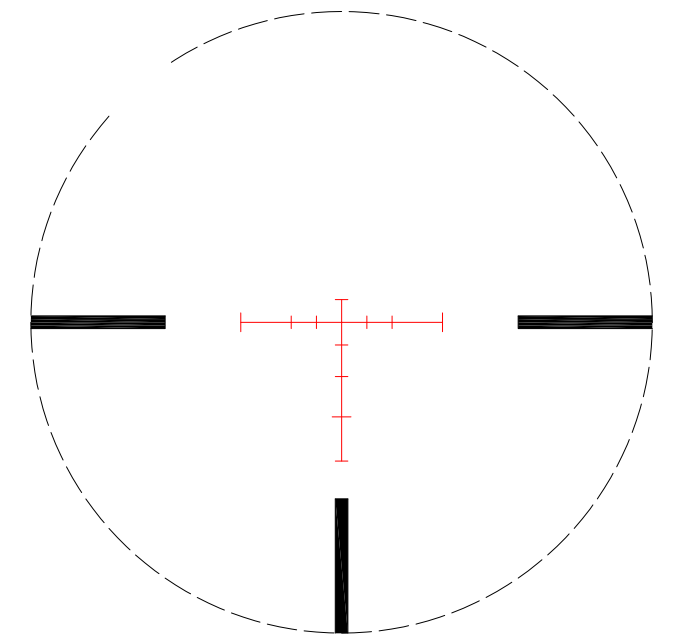

- Glass-etched HOLDFAST reticle
- Fully multi-coated lens
- Microlux ETE GEN III glass coatings
- Zero-stop turrets
- ¼ MOA turret adjustments
- 4” of eye relief
- Side Parallax Adjustable from 10 Yards to ∞
- Dual-color red/green illumination settings
- Supplied with 2 ballistic drop turrets
- Nikko Stirlings’ RTZ® (Return to Zero)
- Optional side-wheel available
- Sunshade included
- For Further information please see the Diamond Long Range Manual
Waterproof
For wet environments
30mm
Tube Diameter
Shock Proof
Withstands recoil
Nitrogen Filled
Fog free
Multicoated Lenses
Optimized resolution
Illumination
Support at edge of day
RTZ
RTZ® (Return to Zero)
You won’t put it in a pool, but you almost can
Harder than you can imagine, lifetime warranty
Specifications
| Model | Magnification | Obj. Diameter (mm) | FOV (m at 100m) High power / Low power |
Click Value mm at 100m |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (mm) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (mm) | Weight (grams) | Parallax (m) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NDSI41650LRHF | 4 - 16 | 50 | 2.7 | 10.7 | 7 | 60 | 60 | 80 | 80 | ● | 349 | 784 | 9.1 - ∞ | ● | HF/skeleton HMD | ||
| NDSI62450LRHF | 6 - 24 | 50 | 1.8 | 7.1 | 7 | 40 | 40 | 80 | 80 | ● | 390 | 788 | 10 - ∞ | ● | HF/skeleton HMD | ||
| NDSI104056LRHMD | 10-40 | 56 | 0.9 | 3.5 | 7 | 40 | 40 | 95 | 105 | ● | 425 | 880 | 9.1 - ∞ | ● | HF/skeleton HMD | ||
| Model | Magnification | Obj. Diameter (inch) | FOV (ft at 100 yds) High power / Low power |
Click Value MOA |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (inch) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (inch) | Weight (oz) | Parallax (yds) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NDSI41650LR | 4 - 16 | 1.97 | 8.0 | 32.1 | 1/4 | 60 | 60 | 3.1 | 3.1 | ● | 13.7 | 27.7 | 10 - ∞ | ● | HF/skeleton HMD | ||
| NDSI62450LR | 6 - 24 | 1.97 | 5.4 | 21.4 | 1/4 | 40 | 40 | 3.1 | 3.1 | ● | 15.4 | 27.8 | 11 - ∞ | ● | HF/skeleton HMD | ||
| NDSI104056LRHMD | 10-40 | 2.20 | 2.6 | 10.5 | 1/8 | 40 | 40 | 3.7 | 4.1 | ● | 16.7 | 31.0 | 10 - ∞ | ● | HF/skeleton HMD | ||
