Panamax Long Range 6-18x50 AO IR
Features:
- Nikko Stirling Panamax® Wide Angle Lens
- Extreme Field of View – approx 20% more than std 1” scope
- 1” Maintube
- ¼ MOA Increments (7mm@100m)
- Centerfire, rimfire and airgun rated
- AO models - Adjustable objective from 10 yards up to infinity
- IR models - Illuminated reticle models features red/green illumination

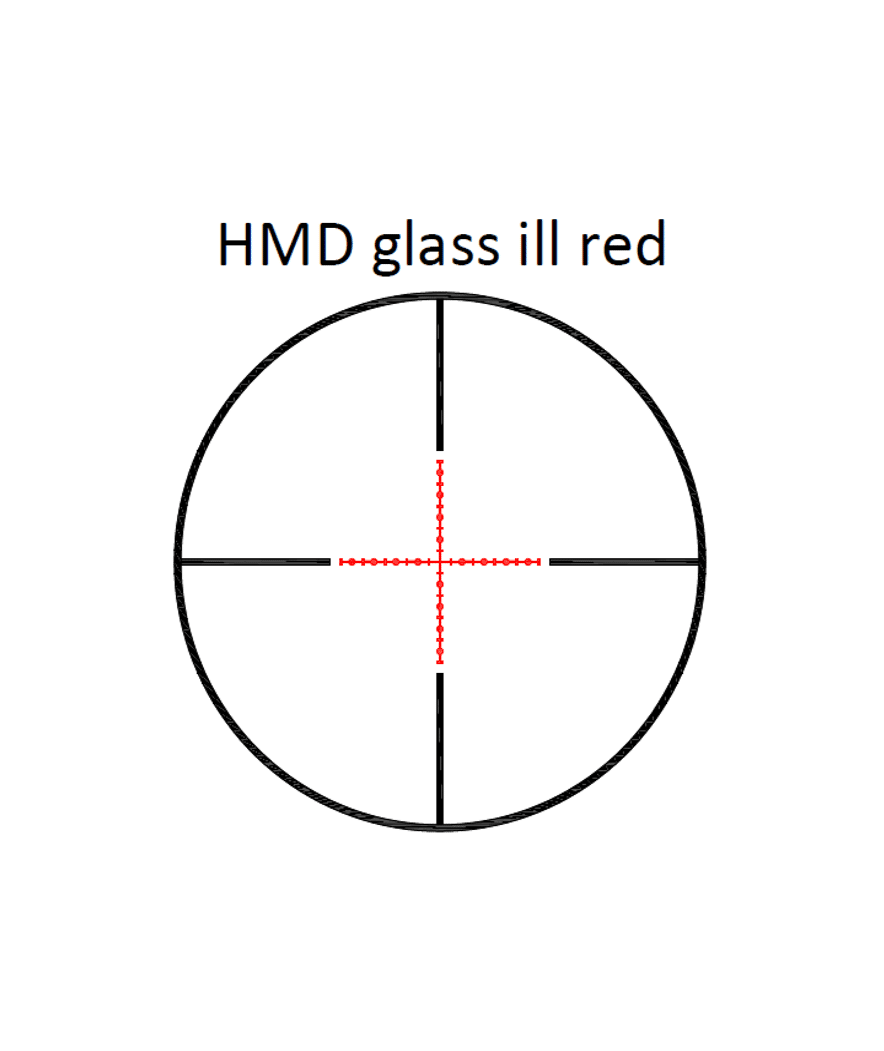

- Half Mil Dot reticle
- Illuminated models features glass etched reticles
- Fast eye focus
Design owned by Nikko Stirling
Subject to alterations
Waterproof
For wet environments
Shock Proof
Withstands recoil
Nitrogen Filled
Fog free
Multicoated Lenses
Optimized resolution
Illumination
Support at edge of day
1 Inch
Tube Diameter
You won’t put it in a pool, but you almost can
Harder than you can imagine, lifetime warranty
Specifications
| Model | Magnification | Obj. Diameter (mm) | FOV (m at 100m) High power / Low power |
Click Value mm at 100m |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (mm) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (mm) | Weight (grams) | Parallax (m) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPGI61850AO | 6 - 18 | 50 | 2.4 | 7.3 | 7 | 60 | 60 | 80 | 80 | ● | 358.5 | 640 | 9.1 - ∞ | ● | HMD | ||
| NPGI82450AO | 8 - 24 | 50 | 1.8 | 5.5 | 7 | 60 | 60 | 80 | 80 | ● | 369.5 | 650 | 9.1 - ∞ | ● | HMD | ||
| Model | Magnification | Obj. Diameter (inch) | FOV (ft at 100 yds) High power / Low power |
Click Value MOA |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (inch) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (inch) | Weight (oz) | Parallax (yds) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPGI61850AO | 6 - 18 | 1.97 | 7.3 | 22.0 | 1/4 | 60 | 60 | 3.1 | 3.1 | ● | 14.1 | 22.6 | 10 - ∞ | ● | HMD | ||
| NPGI82450AO | 8 - 24 | 1.97 | 5.5 | 16.5 | 1/4 | 60 | 60 | 3.1 | 3.1 | ● | 14.5 | 22.9 | 10 - ∞ | ● | HMD | ||
Specific Images
