Target Master 1 Inch 5-20x50

Features:
  • Field grade target turrets
  • ¼ MOA click increments
  • Turrets feature lockable zero-retention rings
  • One piece high grade aricrat aluminium tube

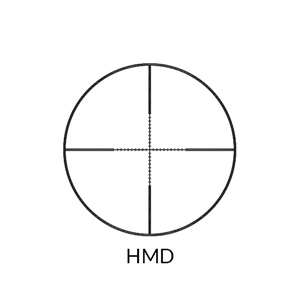

  • Glass etched Half Mil Dot reticle

Low dispersion proprietary ETE multi coated lenses

Subject to alterations
icon
Waterproof
For wet environments
icon
30mm
Tube Diameter
icon
Shock Proof
Withstands recoil
icon
Nitrogen Filled
Fog free
icon
Multicoated Lenses
Optimized resolution
divider graphic

You won’t put it in a pool, but you almost can

Harder than you can imagine, lifetime warranty

divider graphic

Specifications

Model Magnification Obj. Diameter (mm) FOV (m at 100m)
High power / Low power
Click Value
mm at 100m
E/W range (MOA)
Up/Down / Left/Right
Eye Relief (mm)
High power / Low power
Tube Diameter
1 inch / 30mm
Length (mm) Weight (grams) Parallax (m) Illuminated Reticle
Yes / No
Reticle
NSTT125520MD 1.25 - 5 20 6.7 26.7 7 40 40 90 100 295 520 91 HMD
NSTT251042MD 2.5 - 10 42 3.3 13.3 7 30 30 90 100 333 567 91 HMD
NSTT41644MD 4 - 16 44 2.1 8.4 7 30 30 90 100 369 621 9.1 - ∞ HMD
NSTT52050MD 5 - 20 50 1.7 6.7 7 30 30 90 100 394 692 9.1 - ∞ HMD
NSTT62450MD 6 - 24 50 1.3 5.3 7 25 25 90 100 379 685 9.1 - ∞ HMD
Model Magnification Obj. Diameter (mm) FOV (m at 100m)
High power / Low power
Click Value
mm at 100m
E/W range (MOA)
Up/Down / Left/Right
Eye Relief (mm)
High power / Low power
Tube Diameter
1 inch / 30mm
Length (mm) Weight (grams) Parallax (m) Illuminated Reticle
Yes / No
Reticle
NSTT125520MD 1.25 - 5 0.79 20.0 80.0 1/4 40 40 3.5 3.9 11.6 18.3 100 HMD
NSTT251042MD 2.5 - 10 1.65 10.0 40.0 1/4 30 30 3.5 3.9 13.1 20.0 100 HMD
NSTT41644MD 4 - 16 1.73 6.3 25.2 1/4 30 30 3.5 3.9 14.5 21.9 10 - ∞ HMD
NSTT52050MD 5 - 20 1.97 5.0 20.0 1/4 30 30 3.5 3.9 15.5 24.4 10 - ∞ HMD
NSTT62450MD 6 - 24 1.97 4.0 16.0 1/4 25 25 3.5 3.9 14.9 24.2 10 - ∞ HMD

Specific Manuals


Code:
target-master-1inch
en

Targetmaster 1 Inch Turret Information

Download pdf
Code:
target-master-1inch
en

Targetmaster 1 Inch Reticle Information

Download pdf
