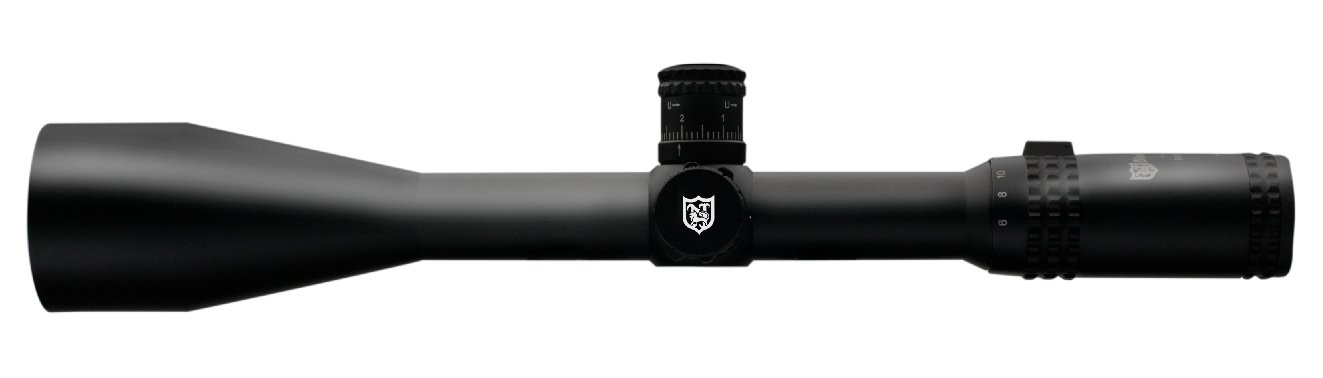

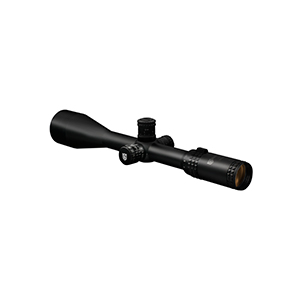

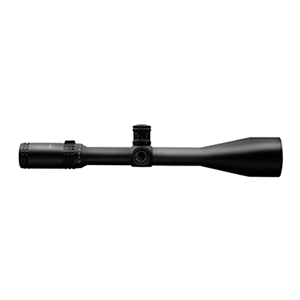

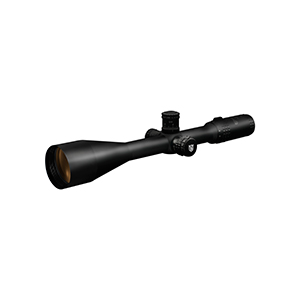

Target Master 30mm 6-24x56
Features:
- Target turrets with precise 1/8 MOA click
- Lockable zero-retention rings on turrets
- One piece high grade aircraft 30mm alloy main tube

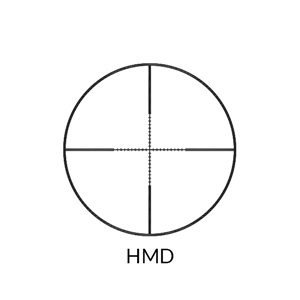

- Glass etched, red illuminated Half Mil Dot reticle
ETE coated lenses for optimized light transmission
Subject to alterations
Waterproof
For wet environments
30mm
Tube Diameter
Shock Proof
Withstands recoil
Nitrogen Filled
Fog free
Multicoated Lenses
Optimized resolution
Illumination
Support at edge of day
You won’t put it in a pool, but you almost can
Harder than you can imagine, lifetime warranty
Specifications
| Model | Magnification | Obj. Diameter (mm) | FOV (m at 100m) High power / Low power |
Click Value mm at 100m |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (mm) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (mm) | Weight (grams) | Parallax (m) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NSTT3041644MD | 4 - 16 | 44 | 2.2 | 8.8 | 3.5 | 30 | 30 | 90 | 100 | ● | 371 | 670 | 9.1 - ∞ | ● | HMD / LRX | ||
| NSTT3052050MD | 5 - 20 | 50 | 1.8 | 7.2 | 3.5 | 30 | 30 | 90 | 100 | ● | 389 | 710 | 9.1 - ∞ | ● | HMD / LRX | ||
| NSTT3062456MD | 6 - 24 | 56 | 1.3 | 5.2 | 3.5 | 25 | 25 | 90 | 100 | ● | 424 | 770 | 9.1 - ∞ | ● | HMD | ||
| NSTT30105060MD | 10 - 50 | 60 | 0.6 | 3.1 | 3.5 | 25 | 25 | 90 | 100 | ● | 440 | 860 | 9.1 - ∞ | ● | HMD | ||
| Model | Magnification | Obj. Diameter (inch) | FOV (ft at 100 yds) High power / Low power |
Click Value MOA |
E/W range (MOA) Up/Down / Left/Right |
Eye Relief (inch) High power / Low power |
Tube Diameter 1 inch / 30mm |
Length (inch) | Weight (oz) | Parallax (yds) | Illuminated Reticle Yes / No |
Reticle | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NSTT3041644MD | 4 - 16 | 1.73 | 6.6 | 26.4 | 1/8 | 30 | 30 | 3.5 | 3.9 | ● | 14.6 | 23.6 | 10 - ∞ | ● | HMD / LRX | ||
| NSTT3052050MD | 5 - 20 | 1.97 | 5.4 | 21.6 | 1/8 | 30 | 30 | 3.5 | 3.9 | ● | 15.3 | 25.0 | 10 - ∞ | ● | HMD / LRX | ||
| NSTT3062456MD | 6 - 24 | 2.20 | 3.9 | 15.6 | 1/8 | 25 | 25 | 3.5 | 3.9 | ● | 16.7 | 27.2 | 10 - ∞ | ● | HMD | ||
| NSTT30105060MD | 10 - 50 | 2.36 | 1.9 | 9.2 | 1/8 | 25 | 25 | 3.5 | 3.9 | ● | 17.3 | 30.3 | 10 - ∞ | ● | HMD | ||
